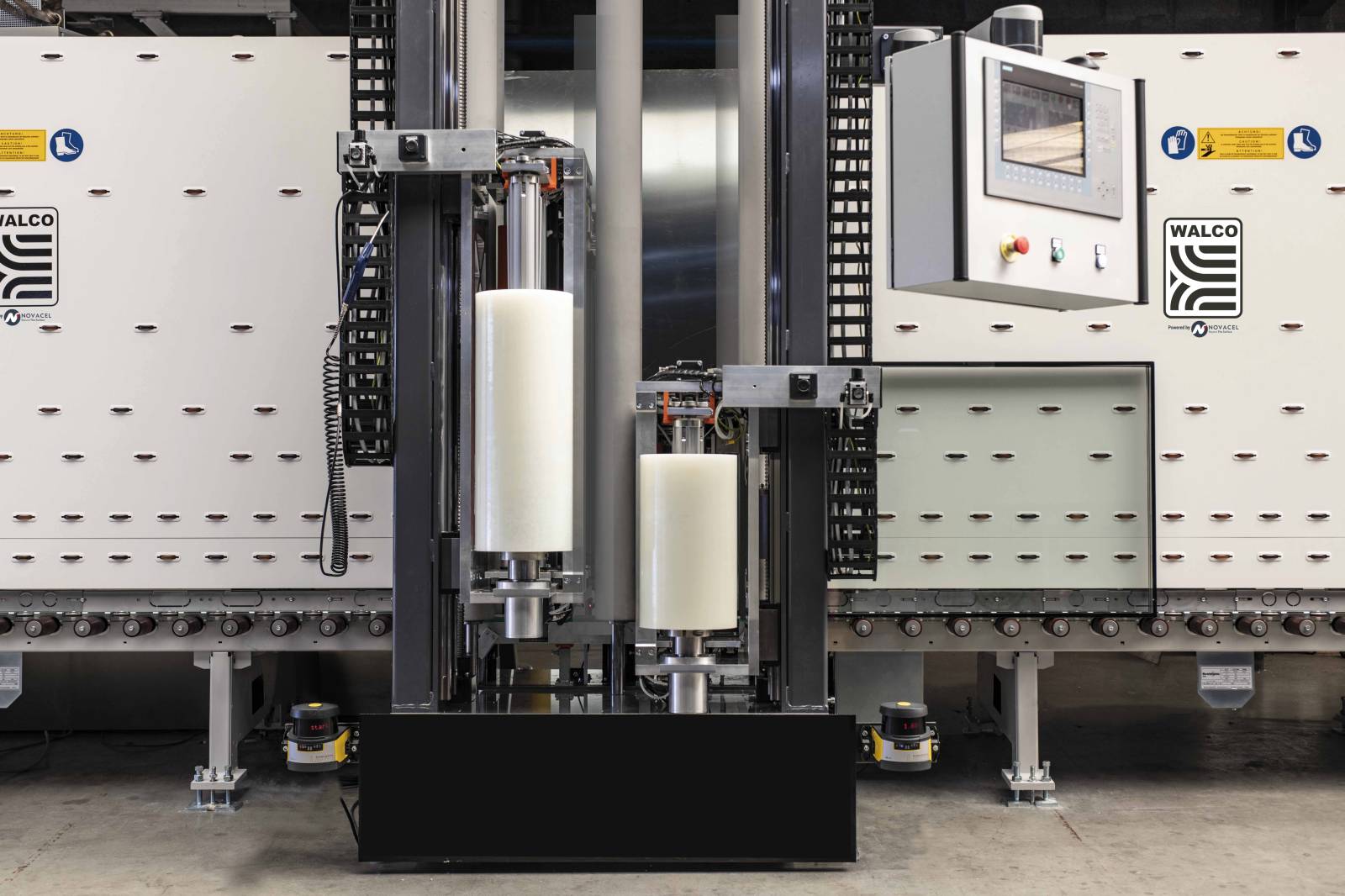

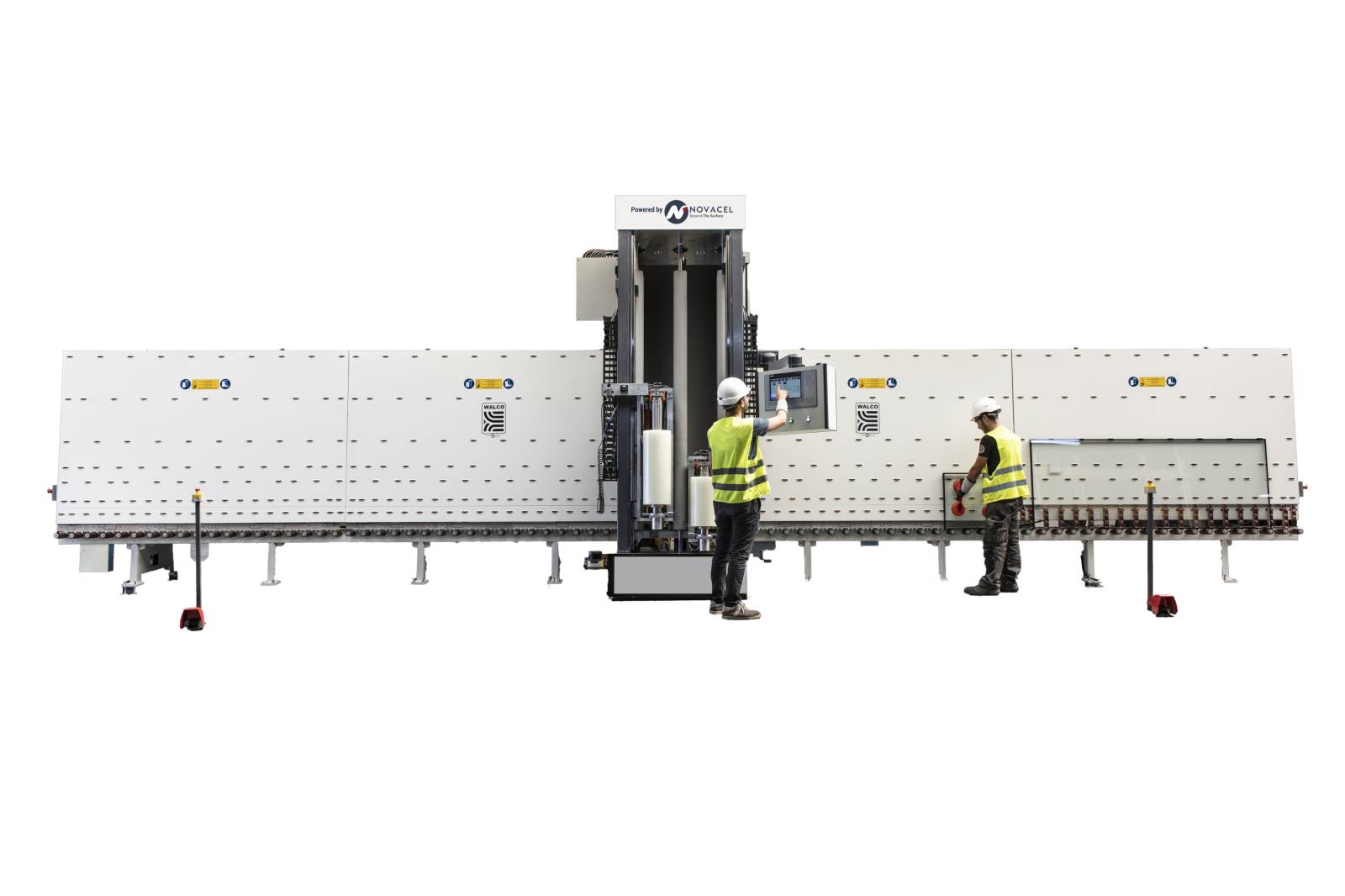

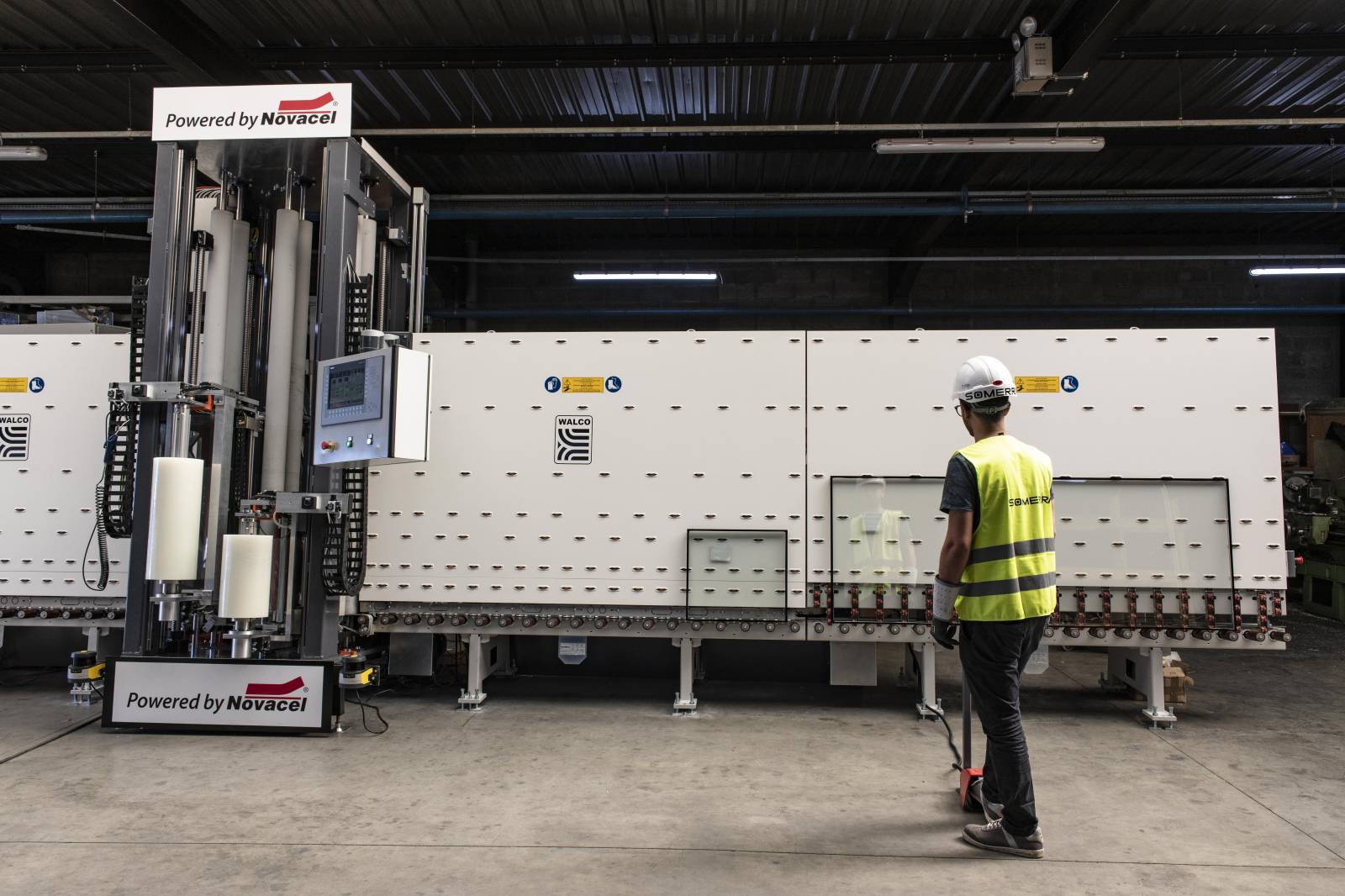

WALCO® VX2 is a unique vertical laminator custom-designed for the application of a temporary protective film on Insulated Glass Units and flat glass.

The VX uses the latest WALCO® patented technologies such as the both face application on the vertical process and the WALCO® cutting system.

Discover the video introducing our VX laminator!

Complies with EU machinery directive 2006/42/EC.

Download documentation

To view the complete documentation of this product, please enter your e-mail address below:

VX2

Added Value

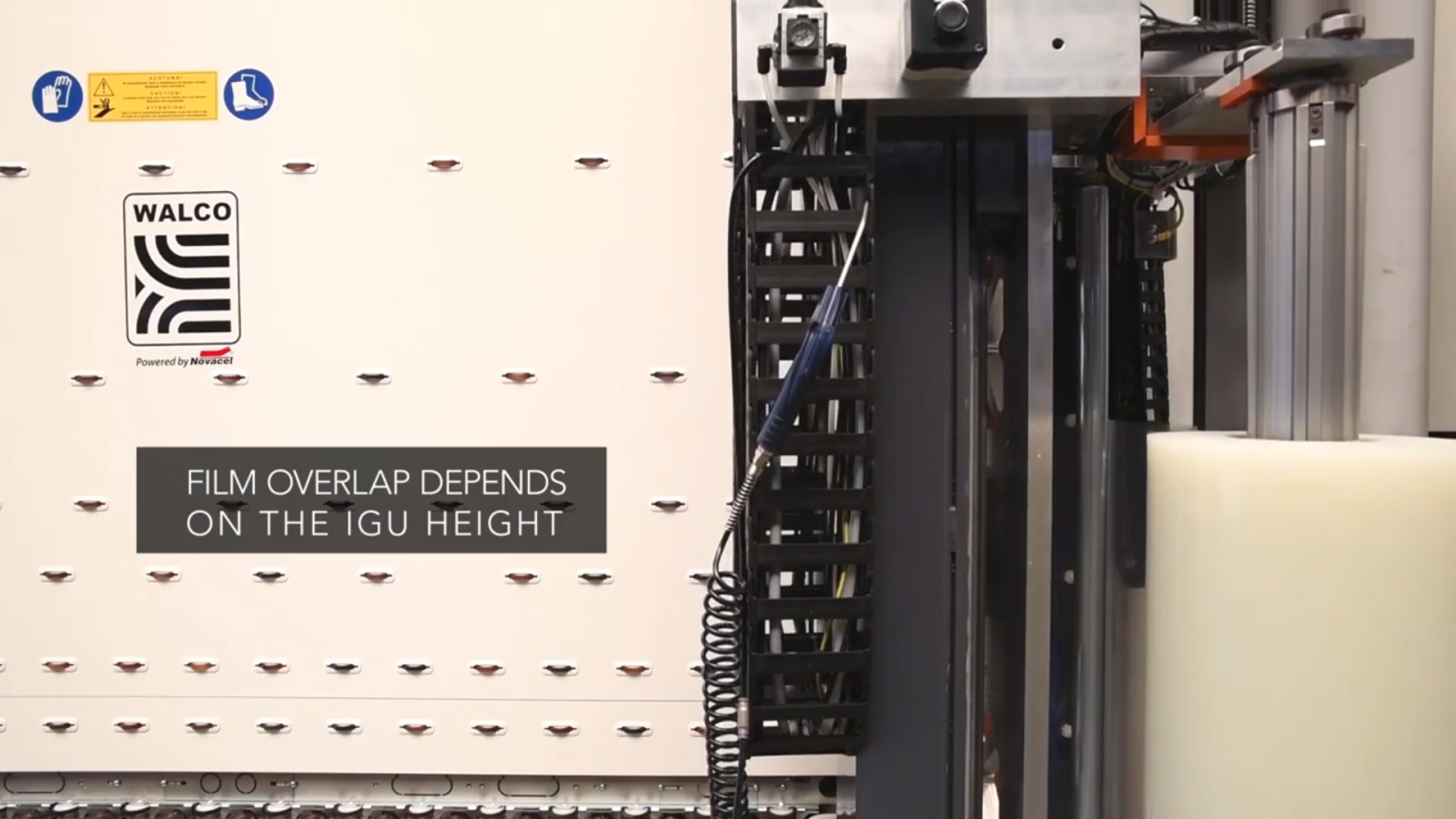

  • Automatic adjustment of the size of the film in function of the IGU

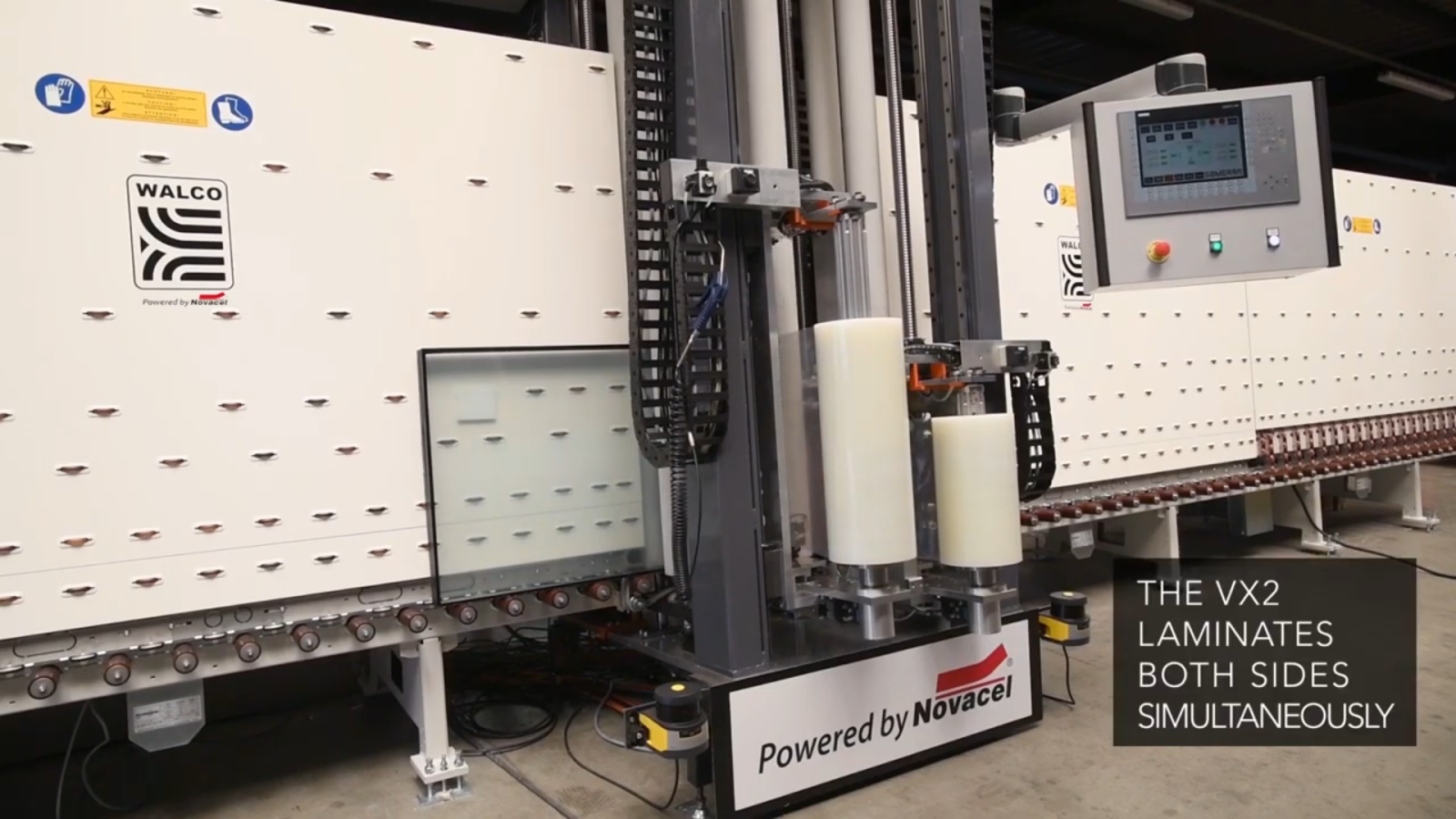

  • Protection of both sides of IGU in a single pass
  • Only 30s to cover both sides of IGU (cycle time) - Average time for 1m² both sides
  • Safe and ergonomic machine

Cutting System

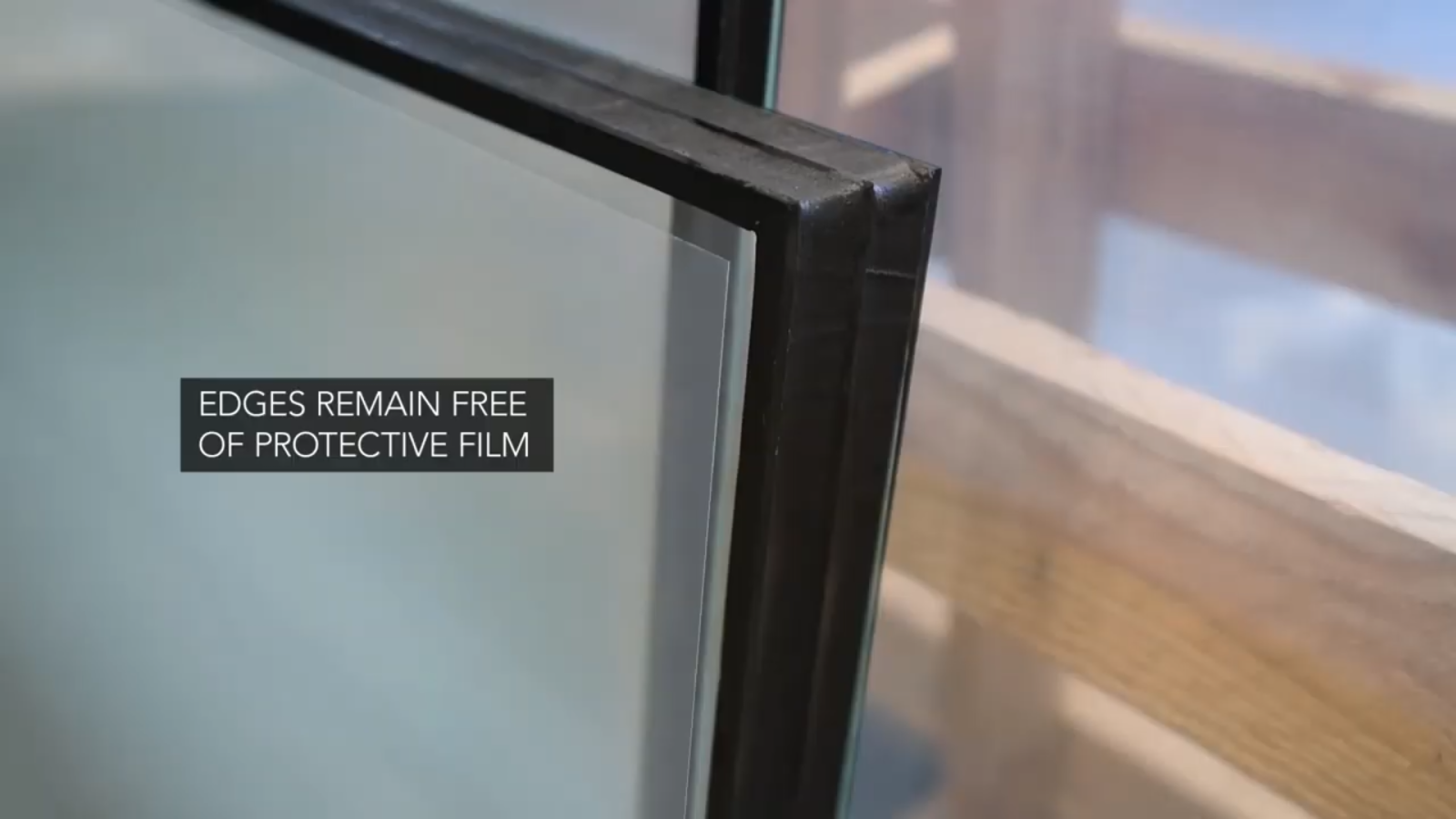

  • WALCO® Patented Automatic cutting system with adjustable margin : Adjustable free space without film all around the glass
  • Cut to edge
  • Negative cut

Working width

  • Height: 300 mm to 3,200 mm (12” to 126”)
  • Lenght: 500 mm to the maximum conveyor length
  • Other sizes available on customer request.

Thickness

  • 4 mm to 80 mm (0.16” to 3.1”)

Custom properties

Glass & Windows

  • IGUs
  • Flat glass & mirrors
