VX on Line

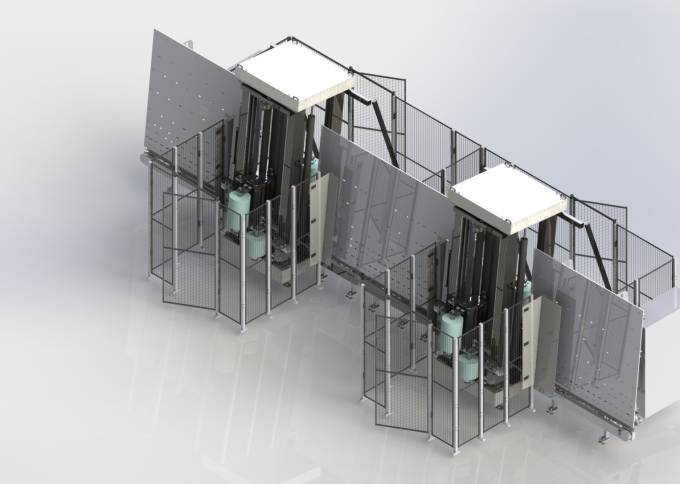

The future of IGU LAMINATION. VX in line are unique vertical laminators custom-designed for the application of a temporary protective film on Insulated Glass Units and flat glass.

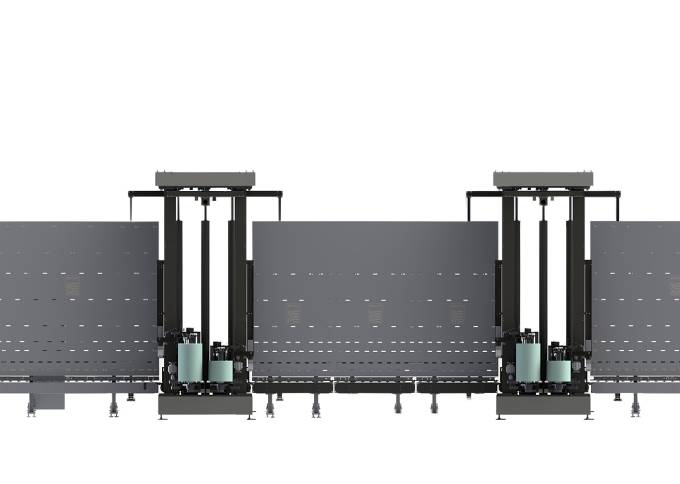

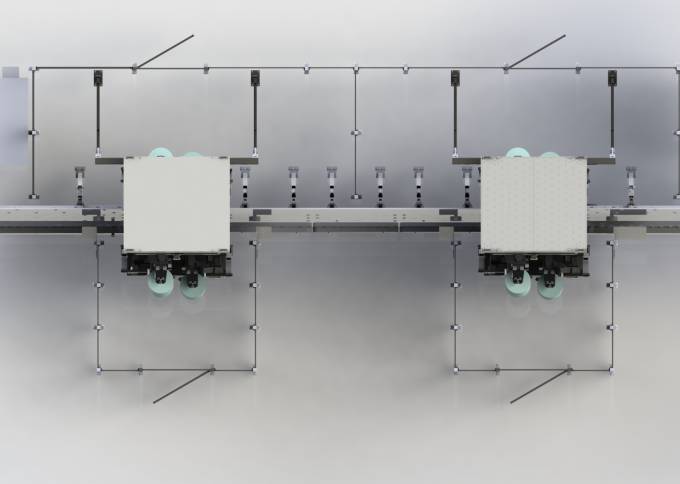

2 VX are installed in tandem with 3 conveyors between each laminator.

The VX ON LINE can be installed in a line after the press and before the Sealing.

The VX in line uses the latest WALCO® patented technologies such as, both face application on the vertical process and the WALCO® cutting system.

Added Value

Automatic application of film width with respect of glass size
Protection of both sides of the glass in a single pass
Only 30 sec to cover both sides of 1 square meter IGU (cycle time)
Safe and ergonomic machine
Compatible with any brand of glass assembly line
Non stop during the glass production

Cutting System

WALCO® Patented Automatic cutting system with adjustable margin
Cut to edge
Negative or Positive cut

Working width

Height : 300 mm to 3,200 mm (12” to 126”)
Length: 500 mm to the maximum conveyor length
Other sizes available on customer request

Thickness

4 mm to 80 mm (0.16” to 3.2”)
