WALCO®, Experts in Coating & Lamination technologies

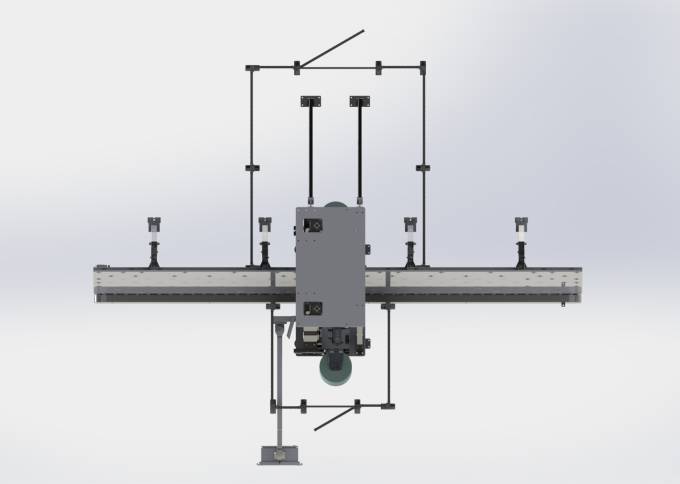

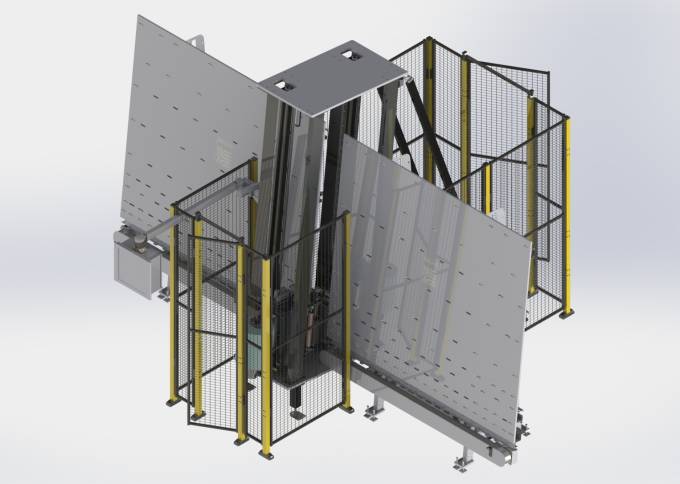

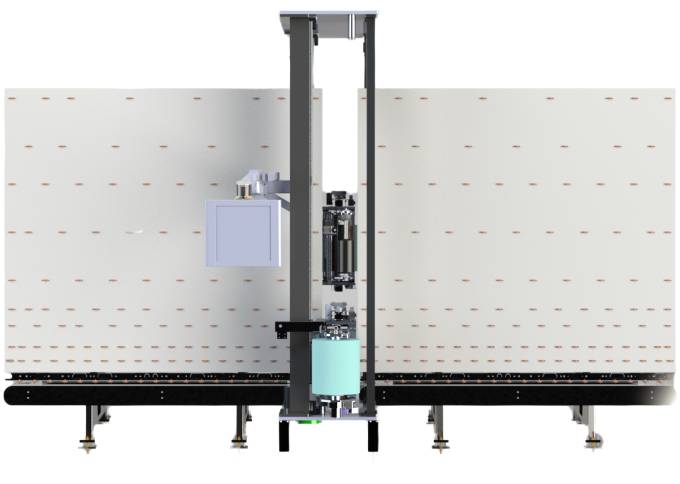

VX Smart

This is the core version of the VX, our unique vertical laminator.

VX Smart is a compact standalone vertical laminator custom-designed for the application of a temporary protective film on Insulated Glass Units, flat glass or other flat surfaces.

The VX Smart uses the latest WALCO® patented technologies such as the WALCO® cutting system.

Mains options

Protection of both sides of Glass in a single pass
Conveyor before and after the laminating process
Secondary Applicator

Added Value

Reduced foot print (Length about 7 m)
Adjustable remaining margin on the glass
Entry-level machine
WALCO® patent on electrostatic charge retention and positioning system

Cutting System

WALCO® Patented Automatic cutting system with adjustable margin
Cut to edge
Negative or Positive cut

Working width

Height : 300 mm to 3,200 mm (12” to 126”)
Length: 500 mm to the maximum conveyor length
Other sizes available on customer request

Thickness

Thickness of the single glass is 4 mm to 80 mm (0.16” to 3.15”)
